Radiation Protection Gloves
Five series of sterile radiation protection gloves. Each pairs an attenuation compound — lead oxide, bismuth oxide or tungsten — with a glove polymer, so you can specify shielding, tactility and material compatibility independently.
| Series | Attenuation compound | Glove polymer | Latex‑free | Types | Pb equivalence @ 80 kVp |
|---|---|---|---|---|---|
| RX ↓ | Lead oxide | Dry natural rubber | Essentially NRL‑protein free* | Light · Medium · Heavy | 0.05 – 0.07 mm Pb |
| PX ↓ | Bismuth oxide | Polyisoprene | Yes | Light · Medium | 0.05 – 0.06 mm Pb |
| BX ↓ | Bismuth oxide | Natural rubber latex | No | Light · Medium | 0.04 – 0.05 mm Pb |
| WX ↓ | Tungsten | Polyisoprene | Yes | Light · Medium | 0.05 – 0.06 mm Pb |
| LX ↓ | Lead oxide | Polyisoprene | Yes | Light · Medium | 0.04 – 0.05 mm Pb |
* RX gloves are made from Dry Natural Rubber (DNR) and are essentially free from the protein allergy problem associated with natural rubber latex (Yip E et al., J Nat Rubber Res, 1994).

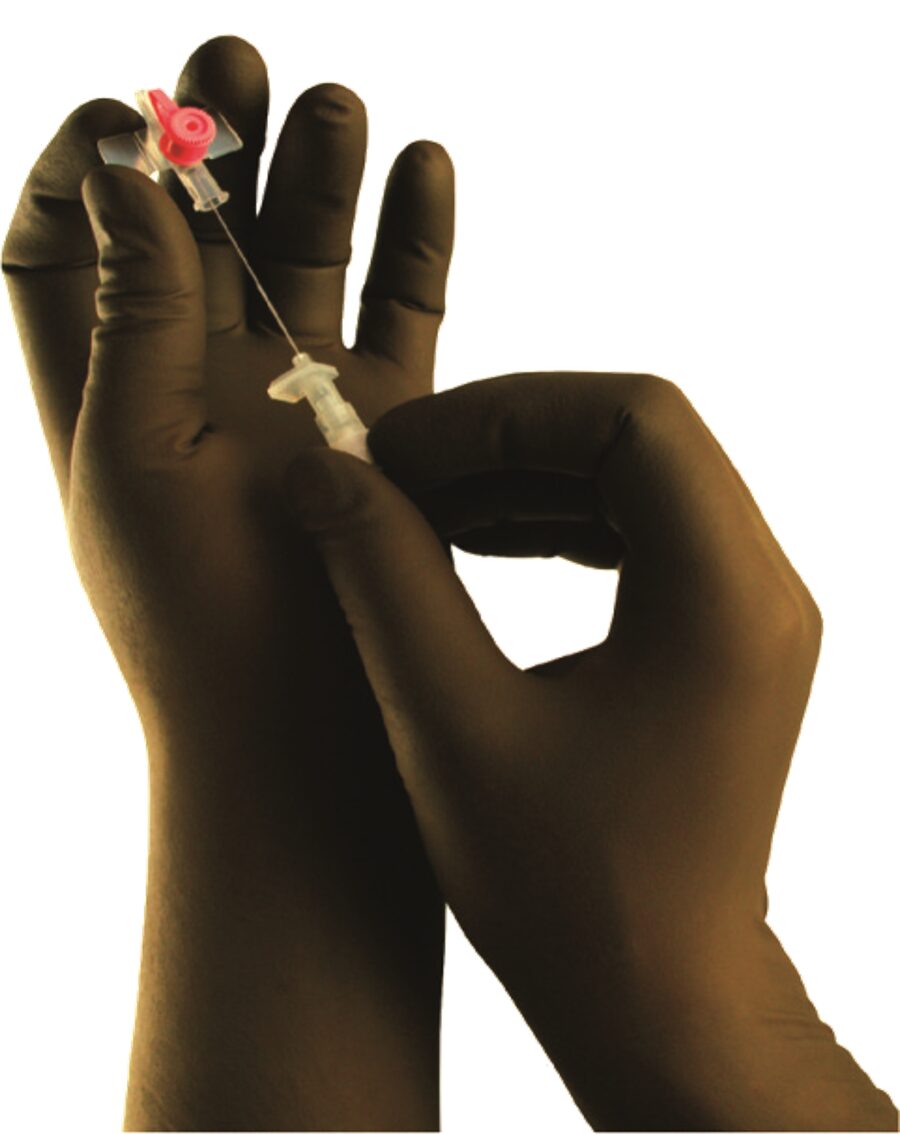

Leaded · Dry Natural Rubber
RXL (Light) · RX1 (Medium) · RX2 (Heavy)
The benchmark of the range. RX gloves are made from Dry Natural Rubber and lead oxide, offering the highest attenuation in the RFB portfolio across three protection levels — so operators can trade tactility against shielding procedure by procedure. DNR construction keeps them essentially free from the protein allergy problem associated with natural rubber latex.
| Energy level | RXL (Light) | RX1 (Medium) | RX2 (Heavy) |
|---|---|---|---|
| 60 kVp | 55% | 62% | 70% |
| 80 kVp | 47% | 53% | 63% |
| 100 kVp | 42% | 47% | 56% |
| 120 kVp | 36% | 42% | 49% |
| Pb equivalence @ 80 kVp | 0.05 mm | 0.06 mm | 0.07 mm |
| Palm thickness | 0.24 mm | 0.28 mm | 0.38 mm |
Pb equivalence at 80 kVp with 0.15 mm Al filter. Attenuation values may vary by ±5%. Thickness ±0.02 mm.
- Powder‑free, double chlorinated donning
- Dark grey · micro‑rough grip finish
- Beaded cuff to prevent roll‑down
- Minimum length 290 mm
- Freedom from holes: AQL 0.65 (EN 455)
- Force at break ≥ 7 N (≥ 5 N after ageing)
- Sizes 6.0 – 9.0 in half sizes
- EO sterilised · SAL 10⁻⁶ · 3‑year shelf life
- Packed: sterile pouch pair · 5 pairs/inner box · 40 pairs/carton
- EN 61331‑1 · ASTM F2547 · EN 421 · EN ISO 374‑1/‑5 · EN ISO 21420

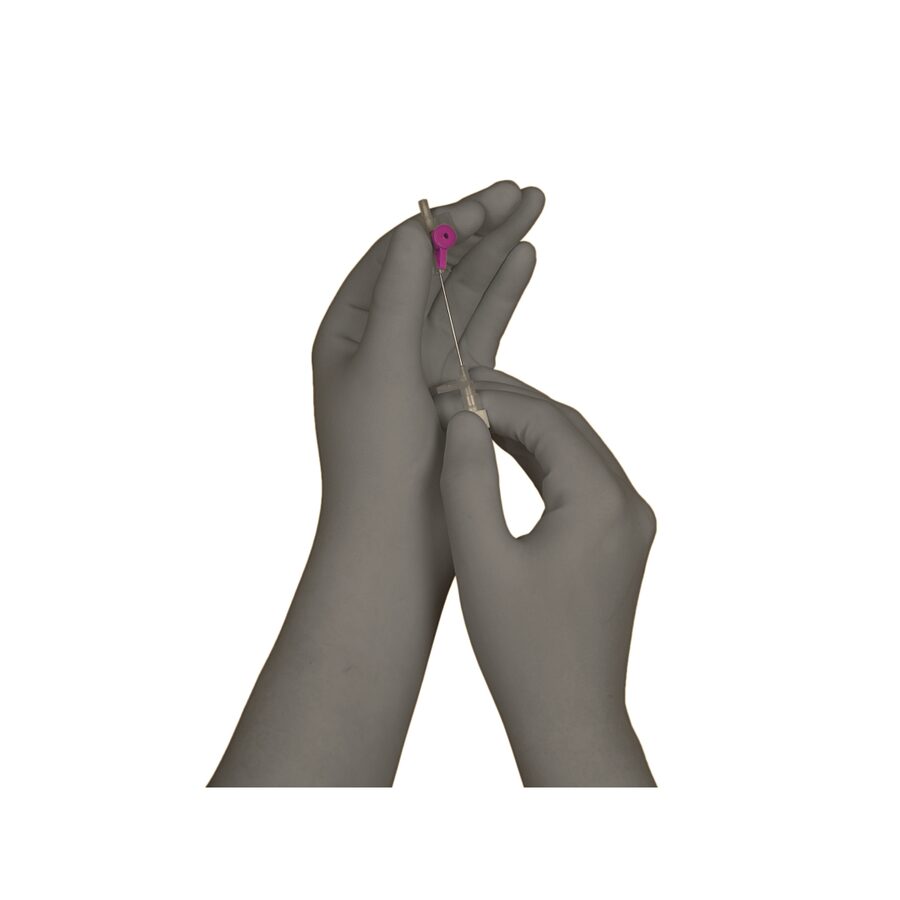

Lead‑Free · Polyisoprene
PXL (Light) · PX1 (Medium)
The double‑free option: bismuth oxide attenuation in a synthetic polyisoprene glove. Polyisoprene carries none of the proteins or allergy risks of natural rubber while delivering an advanced level of comfort, fit and flexibility — ideal where both lead and latex must be designed out.
| Energy level | PXL (Light) | PX1 (Medium) |
|---|---|---|
| 60 kVp | 54% | 62% |
| 80 kVp | 47% | 54% |
| 100 kVp | 41% | 47% |
| 120 kVp | 36% | 42% |
| Pb equivalence @ 80 kVp | 0.05 mm | 0.06 mm |
- Bismuth oxide attenuation — no lead
- Polyisoprene — no natural rubber proteins
- Dark grey · micro‑rough grip finish
- Powder‑free, chlorinated donning
- Beaded cuff · anatomical shaping
- CE Category III · PPE (EU) 2016/425
- EO sterilised · SAL 10⁻⁶ · sterile pouch pairs
- Half sizes from 6.0 — see data sheet for full run

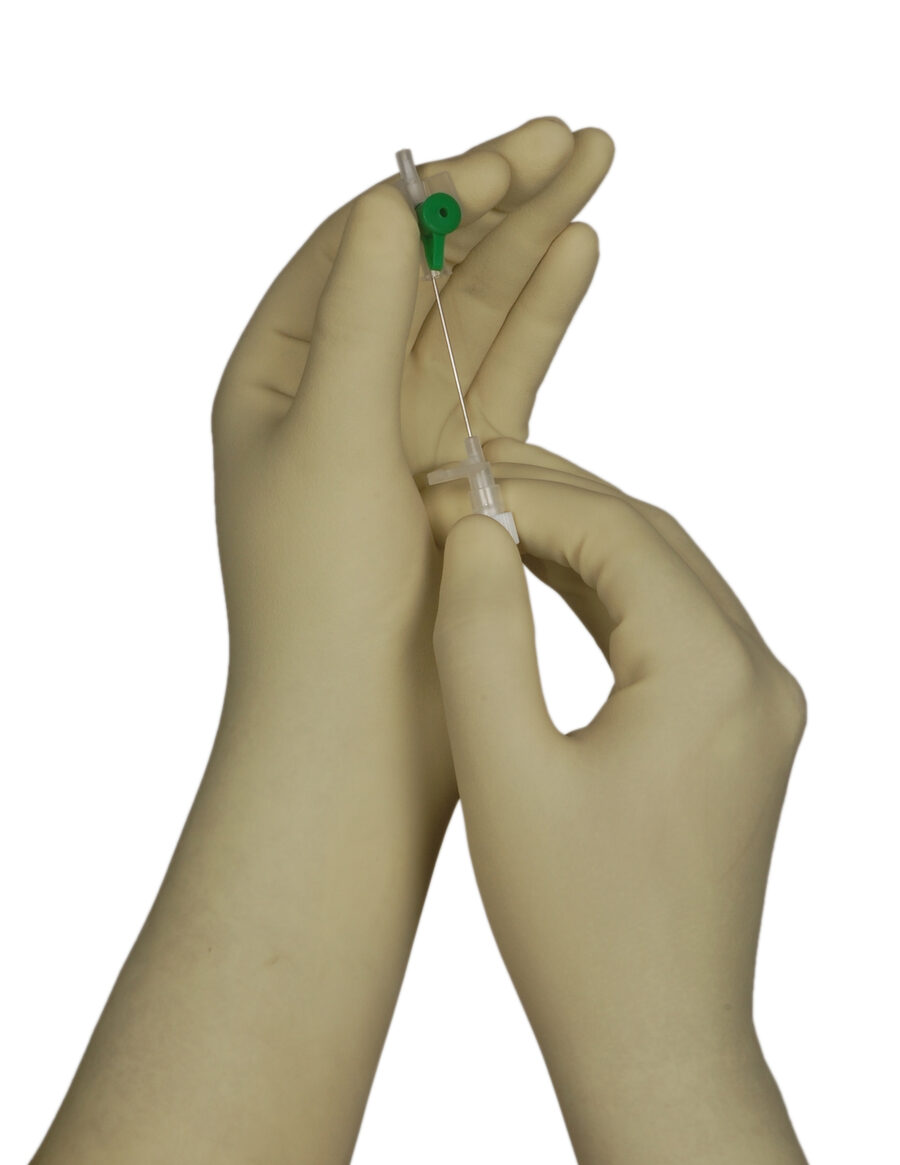

Lead‑Free · Latex
BXL (Light) · BX1 (Medium)
BX gloves replace lead with bismuth oxide — a more environment‑friendly attenuation material — in a natural rubber latex glove. Two protection levels balance shielding with the tactile feel latex users expect. Powder‑free and chlorinated for easy dry or damp donning.
| Energy level | BXL (Light) | BX1 (Medium) |
|---|---|---|
| 60 kVp | 45% | 60% |
| 80 kVp | 35% | 50% |
| 100 kVp | 28% | 40% |
| 120 kVp | 23% | 35% |
| Pb equivalence @ 80 kVp | 0.04 mm | 0.05 mm |
- Bismuth oxide attenuation — no lead
- Natural rubber latex · khaki colour
- Powder‑free, chlorinated donning
- Beaded cuff · anatomical shaping
- Protein tested per EN 455‑3 (ASTM D5712)
- EO sterilised · SAL 10⁻⁶ · sterile pouch pairs
- Half sizes from 6.0 — see data sheet for full run

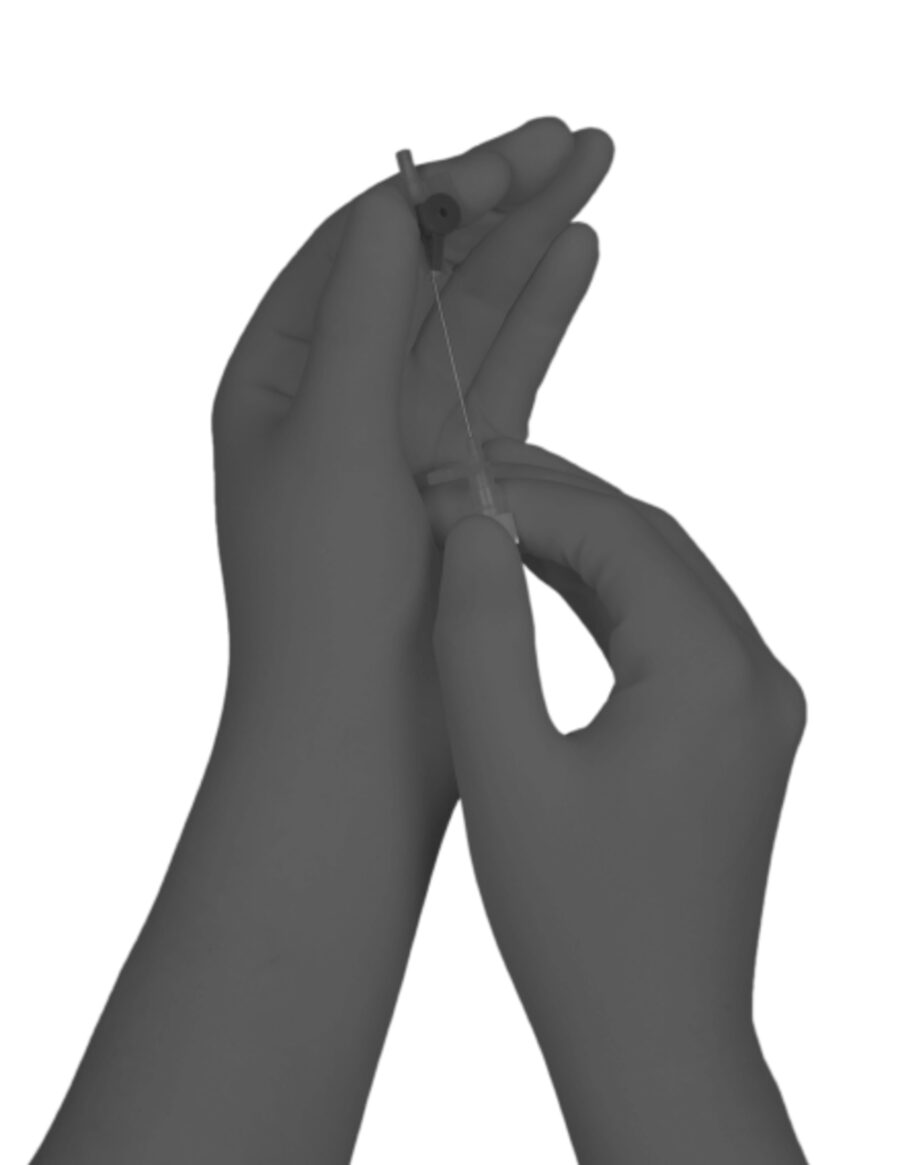

Tungsten · Polyisoprene
WXL (Light) · WX1 (Medium)
The newest chemistry in the range. WX gloves use tungsten — a high‑density, environment‑friendly attenuation material — in the same latex‑free polyisoprene platform as PX, for teams that want lead‑free shielding with a modern metallurgy.
| Energy level | WXL (Light) | WX1 (Medium) |
|---|---|---|
| 60 kVp | 54% | 62% |
| 80 kVp | 47% | 54% |
| 100 kVp | 41% | 47% |
| 120 kVp | 36% | 42% |
| Pb equivalence @ 80 kVp | 0.05 mm | 0.06 mm |
- Tungsten attenuation — no lead
- Polyisoprene — no natural rubber proteins
- Dark grey · micro‑rough grip finish
- Powder‑free, chlorinated donning
- Beaded cuff · anatomical shaping
- CE Category III · PPE (EU) 2016/425
- EO sterilised · SAL 10⁻⁶ · sterile pouch pairs
- Half sizes from 6.0 — see data sheet for full run

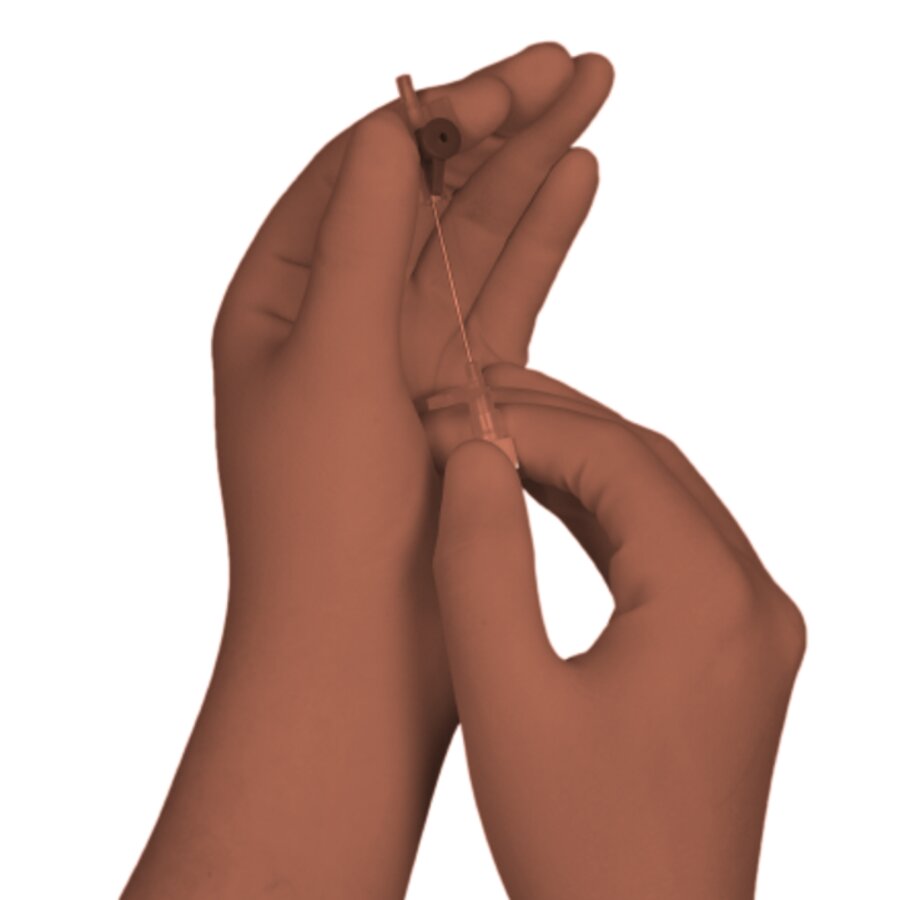

Leaded · Polyisoprene
LXL (Light) · LX1 (Medium)
Leaded protection without latex. LX gloves combine lead oxide attenuation with a synthetic polyisoprene film — the advanced comfort, fit and flexibility of PI, for latex‑sensitive teams that still specify a leaded glove.
| Energy level | LXL (Light) | LX1 (Medium) |
|---|---|---|
| 60 kVp | 56% | 61% |
| 80 kVp | 50% | 54% |
| 100 kVp | 43% | 47% |
| 120 kVp | 39% | 42% |
| Pb equivalence @ 80 kVp | 0.04 mm | 0.05 mm |
- Lead oxide attenuation in a latex‑free film
- Polyisoprene — no natural rubber proteins
- Brownish‑red colour
- Powder‑free, chlorinated donning
- Beaded cuff · anatomical shaping
- ASTM F2547‑06 · IEC 61331‑1
- EO sterilised · SAL 10⁻⁶ · sterile pouch pairs
- Half sizes from 6.0 — see data sheet for full run
Not sure which series fits your procedures?
Tell us your typical kVp range, latex policy and volumes — we will recommend a series and protection level, and send samples.
